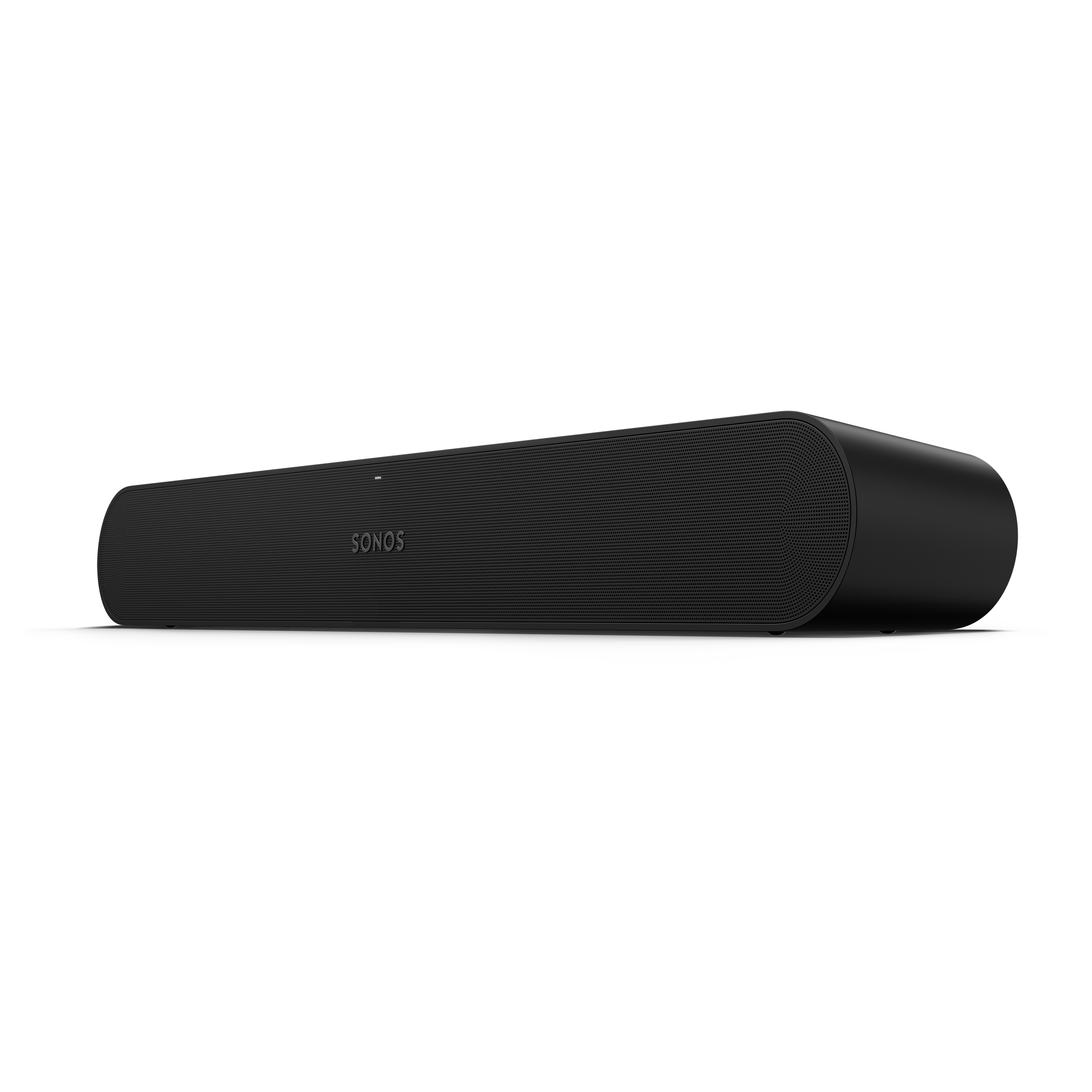

Sonos Ray
Upgrade your TV, music, and gaming experiences with this impressively compact and easy-to-use soundbar.
Experience precisely balanced sound, including crisp dialogue and solid bass, plus streamlined control with your TV remote, the Sonos app, Apple AirPlay 2, and more. It only takes two cables and a few minutes to get set up, and the forward-facing acoustics make Ray ideal for an enclosed space, like a shelf in your TV stand. Enjoy the flexibility to create the Sonos system you want over time when you add speakers for surround sound and multiroom listening.

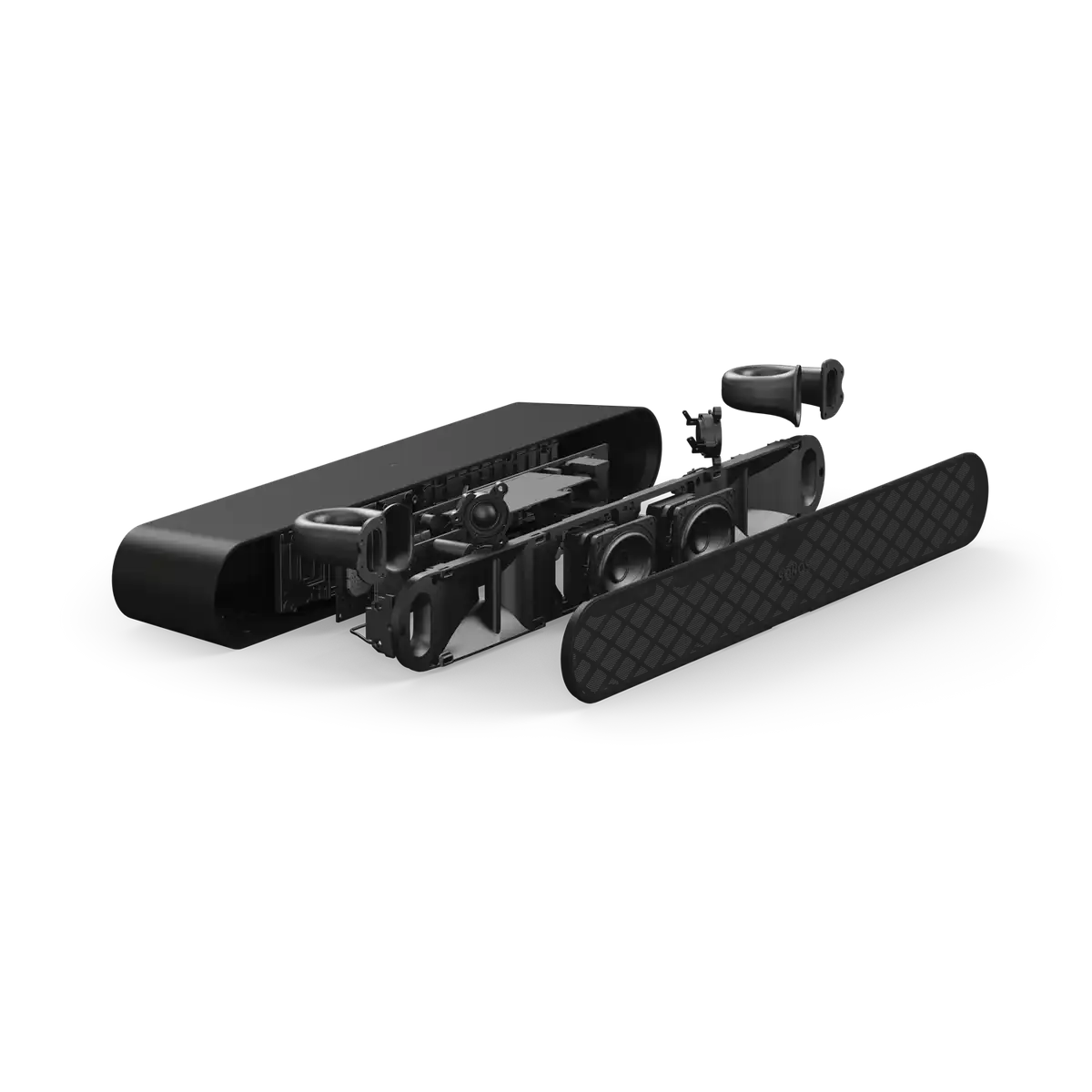

Amplifiers: All four Class-D digital amplifiers have been fine-tuned to the soundbar's unique acoustic architecture.
Tweeters: Two tweeters create a crisp high-frequency response.
Midwoofers: Two high-efficiency midwoofers ensure faithful playback of mid-range frequencies and solid bass.
Bass Reflex System: Proprietary low-velocity port design minimises distortion and rounds out low-end frequencies.
Adjustable EQ:Use the Sonos app to adjust bass, treble and loudness.
Trueplay: This software measures the acoustics of the room then fine-tunes the soundbar. Supported iOS device required.
Speech Enhancement:Turn this setting on in the Sonos app to boost voice frequencies and clarify dialogue.
Home Cinema Audio Formats: Stereo PCM, Dolby Digital 5.1* and DTS Digital Surround* (*This is not an indication of a licenced decoder.) The Sonos app's Now Playing screen will display what type of audio is being decoded.
Night Sound: Turn this setting on in the Sonos app to reduce the intensity of loud sounds and increase the level of quieter sounds.
Dimensions
Height: 2.79 in (71 mm)
Width: 22 in (559 mm)
Depth: 3.74 in (95 mm)
Weight: 4.29 lb (1.95 kg)

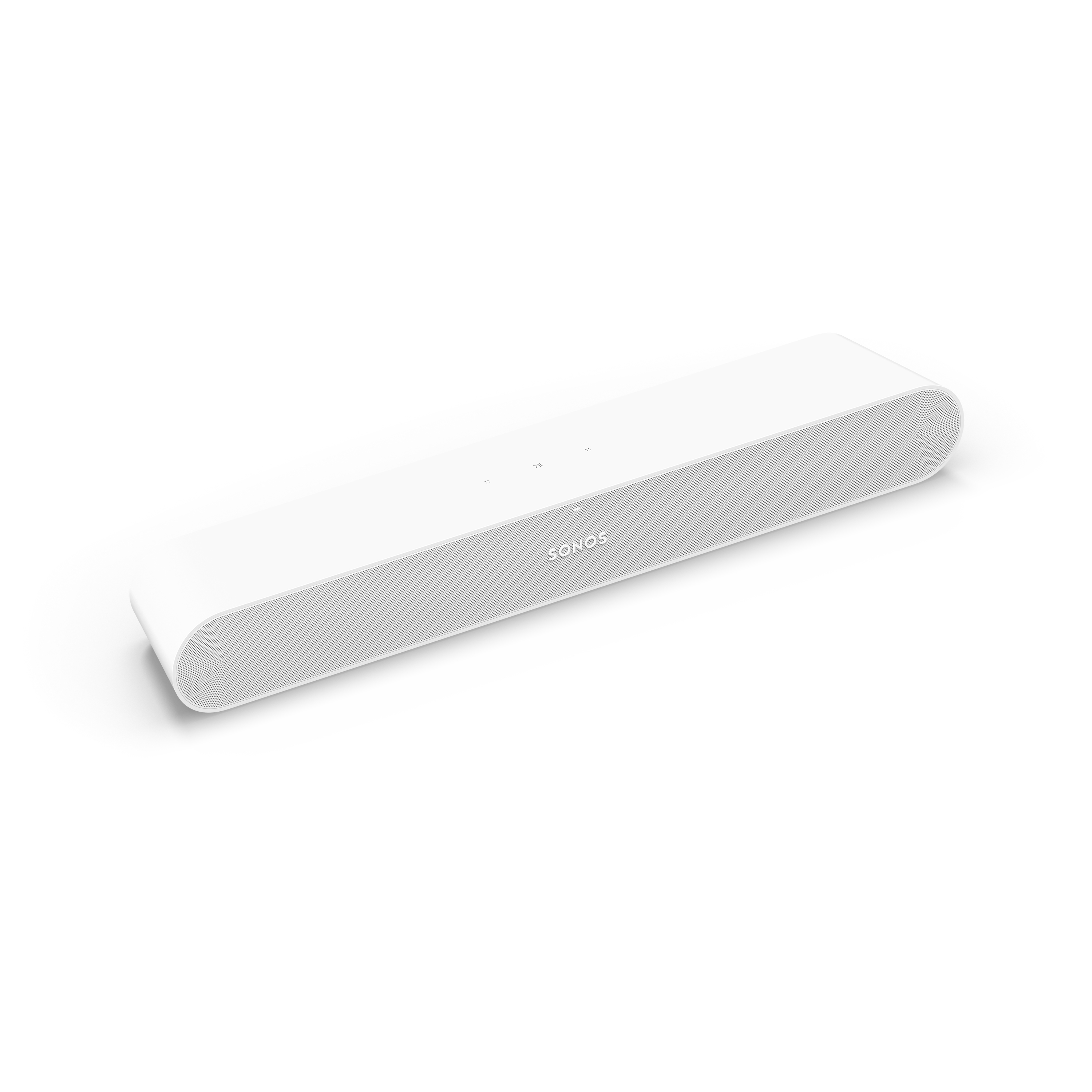

Colours: Black, White
Finish:Matte
Mounting:Threaded mount 0.5 in. (12.7 mm) / 10-32 threaded mounting socket
Controls:Use the buttons to play, pause, skip, replay, adjust the volume, turn off the microphones, manually switch to Bluetooth, and more.
WiFi: Connect to WiFi with any 2.4 GHz 802.11/b/g/n broadcast-capable router.

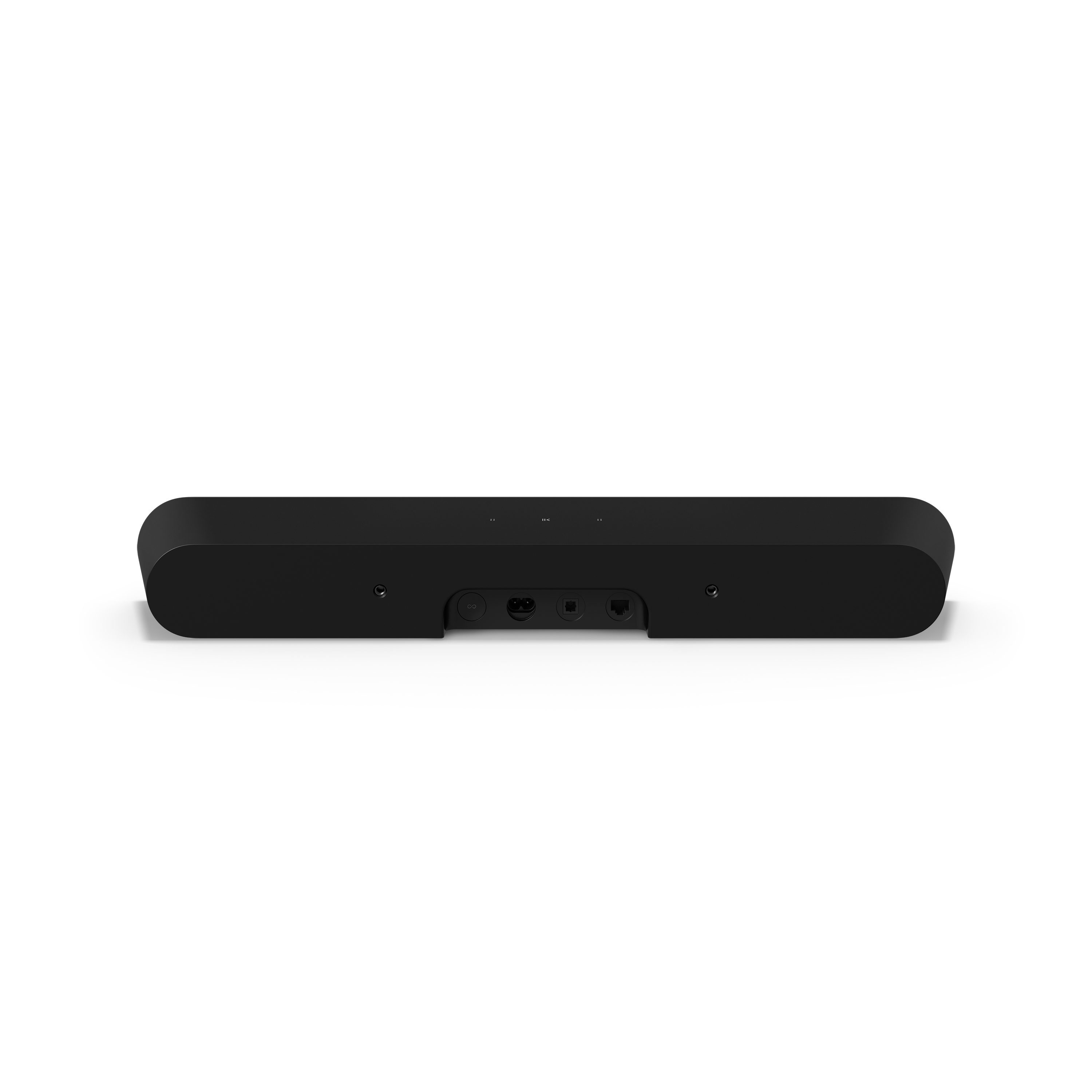

Optical: Connect to your TV's optical output with the included cable.
Ethernet: 10/100 port for hardwiring to your router
Infrared (IR) Receiver: Syncs the soundbar with your TV remote for streamlined control
Apple AirPlay 2: Works with AirPlay 2 on Apple devices iOS 11.4 and higher
Box Contents: Power Cable I Length: 6 ft (2 m)
Documentation: Quickstart Guide and legal/warranty information
Optical Cable: Length: 4.9 ft (1.5 m)
